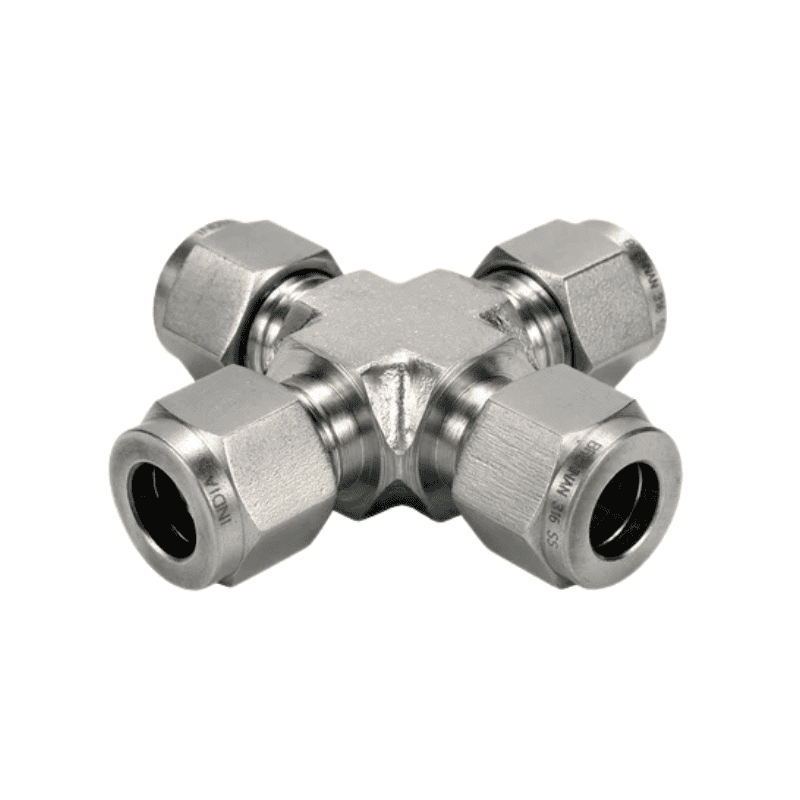

SGI’s Union Cross is designed to connect four tubes, enabling multi-directional flow distribution within instrumentation and industrial gas applications. Available in various size combinations to suit standard tubing requirements.
| Tube OD (in) | A (mm) | D (mm) | E (mm) | F (Flat) (in) | Order No. |
|---|---|---|---|---|---|
| 1/8" | 44.7 | 12.7 | 3/8" | 44.7 | DF-S6-UC-2-2 |
| 1/4" | 53.85 | 15.2 | 1/2" | 53.85 | DF-S6-UC-4-4 |
| 5/16" | 59.44 | 16.3 | 5/8" | 59.44 | DF-S6-UC-5-5 |
| 3/8" | 60.96 | 16.8 | 5/8" | 60.96 | DF-S6-UC-6-6 |
| 1/2" | 72.14 | 22.9 | 13/16" | 72.14 | DF-S6-UC-8-8 |
| 3/4" | 79.76 | 619.4 | 11/16" | 79.76 | DF-S6-UC-12-12 |
| 1" | 98.04 | 31.2 | 13/8" | 98.04 | DF-S6-UC-16-16 |
