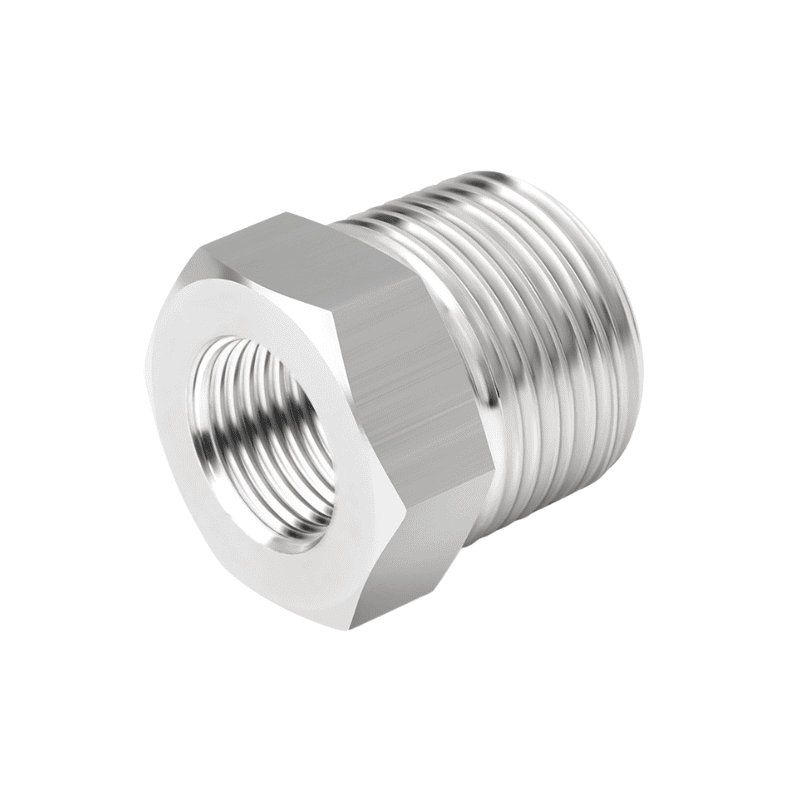

SGI’s Reducing Bushing is designed to reduce the size of threaded ports, enabling connection between different thread sizes within a system. It provides a secure and stable interface with dependable sealing performance. Available in various size combinations to match standard requirements.
| NPT Female | NPT Male | E (mm) | L (mm) | F (in) | PSIG | BAR | Order No. |
|---|---|---|---|---|---|---|---|
| 1/4 | 1/8 | 7.1 | 26.9 | 9/16 | 6000 | 408 | PF-S6-BR-4NM-2NF |
| 3/8 | 1/8 | 8.6 | 21.8 | 11/16 | 6400 | 435 | PF-S6-BR-6NM-2NF |
| 3/8 | 1/4 | 9.6 | 30.2 | 3/4 | 5300 | 360 | PF-S6-BR-6NM-4NF |
| 1/2 | 1/8 | 8.6 | 27.4 | 7/8 | 6600 | 450 | PF-S6-BR-8NM-2NF |
| 1/2 | 1/4 | 11.4 | 27.4 | 7/8 | 6400 | 435 | PF-S6-BR-8NM-4NF |
| 1/2 | 3/8 | 11.9 | 35.8 | 7/8 | 4600 | 315 | PF-S6-BR-8NM-6NF |
| 3/4 | 1/4 | 11.4 | 27.4 | 11/8 | 6400 | 435 | PF-S6-BR-12NM-4NF |
| 3/4 | 3/8 | 15.0 | 27.4 | 11/8 | 5300 | 360 | PF-S6-BR-12NM-6N |
| 3/4 | 1/2 | 15.7 | 41.4 | 11/8 | 4900 | 333 | PF-S6-BR-12NM-8NF |
| 1 | 1/4 | 11.4 | 34.8 | 13/8 | 4600 | 315 | PF-S6-BR-16NM-4NF |
| 1 | 3/8 | 15.0 | 34.8 | 13/8 | 4600 | 315 | PF-S6-BR-16NM-6NF |
| 1 | 1/2 | 18.5 | 34.8 | 13/8 | 4600 | 315 | PF-S6-BR-16NM-8NF |
| 1 | 3/4 | 22.4 | 47.0 | 13/8 | 4200 | 286 | PF-S6-BR-16NM-12NF |
