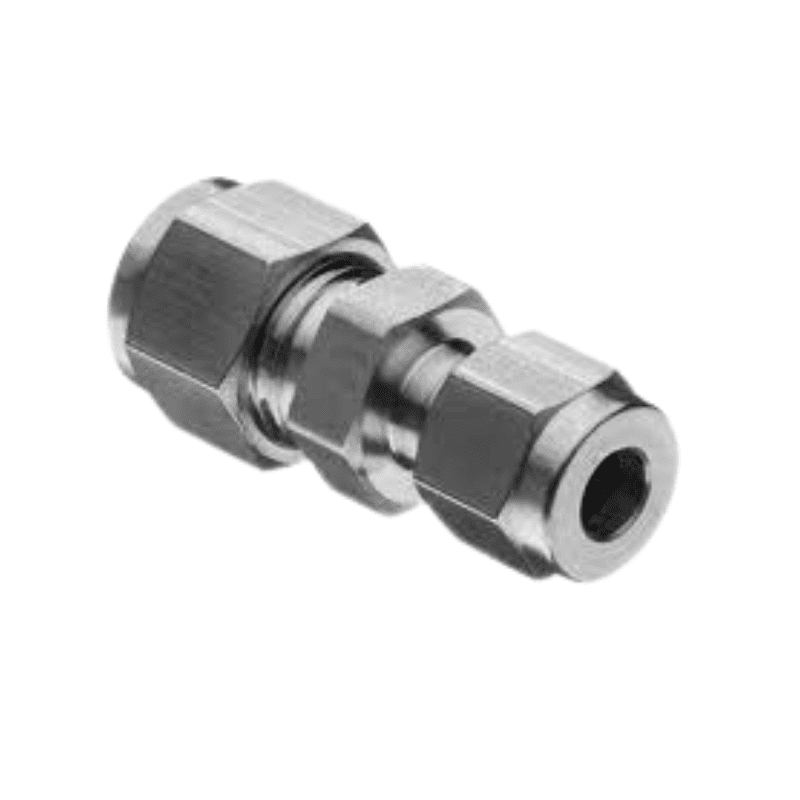

SGI’s Reducing Union is designed to connect tubes of different diameters while maintaining a secure, leak-free connection. Manufactured with precision, it is available in various size combinations to match differing tube sizes.
| Tube OD (in) | Tx (in) | A (mm) | D (mm) | Dx (mm) | E (in) | Order No. |
|---|---|---|---|---|---|---|
| 3/16" | 1/8" | 36.58 | 13.7 | 12.7 | 2.3 | DF-S6-RU-3-2 |
| 1/4" | 1/8" | 38.61 | 15.2 | 12.7 | 2.3 | DF-S6-RU-4-2 |
| 1/4" | 3/16" | 39.37 | 15.2 | 13.7 | 3 | DF-S6-RU-4-3 |
| 5/16" | 1/8" | 39.78 | 16.3 | 12.7 | 2.3 | DF-S6-RU-5-2 |
| 5/16" | 1/4" | 42.16 | 16.3 | 15.2 | 4.8 | DF-S6-RU-5-4 |
| 3/8" | 1/8" | 40.89 | 16.8 | 12.7 | 2.3 | DF-S6-RU-6-2 |
| 3/8" | 1/4" | 43.18 | 16.8 | 15.2 | 4.8 | DF-S6-RU-6-4 |
| 3/8" | 5/16" | 44.2 | 16.8 | 16.3 | 6.4 | DF-S6-RU-6-5 |
| 1/2" | 1/8" | 45.21 | 22.9 | 12.7 | 2.3 | DF-S6-RU-8-2 |
| 1/2" | 1/4" | 46.99 | 22.9 | 15.2 | 4.8 | DF-S6-RU-8-4 |
| 1/2" | 3/8" | 49.51 | 22.9 | 16.8 | 7.1 | DF-S6-RU-8-6 |
| 5/8" | 3/8" | 49.28 | 24.4 | 16.8 | 7.1 | DF-S6-RU-10-6 |
| 5/8" | 1/2" | 52.07 | 24.4 | 22.9 | 10.4 | DF-S6-RU-10-8 |
| 3/4" | 1/4" | 49.28 | 24.4 | 15.2 | 4.8 | DF-S6-RU-10-4 |
| 3/4" | 3/8" | 50.8 | 24.4 | 16.8 | 7.1 | DF-S6-RU-12-6 |
| 3/4" | 1/2" | 53.59 | 24.4 | 22.9 | 10.4 | DF-S6-RU-12-8 |
| 3/4" | 5/8" | 53.59 | 24.4 | 24.4 | 12.7 | DF-S6-RU-12-10 |
| 1" | 1/2" | 60.45 | 31.2 | 22.9 | 10.4 | DF-S6-RU-16-8 |
| 1" | 3/4" | 60.45 | 31.2 | 24.4 | 15.7 | DF-S6-RU-16-12 |
