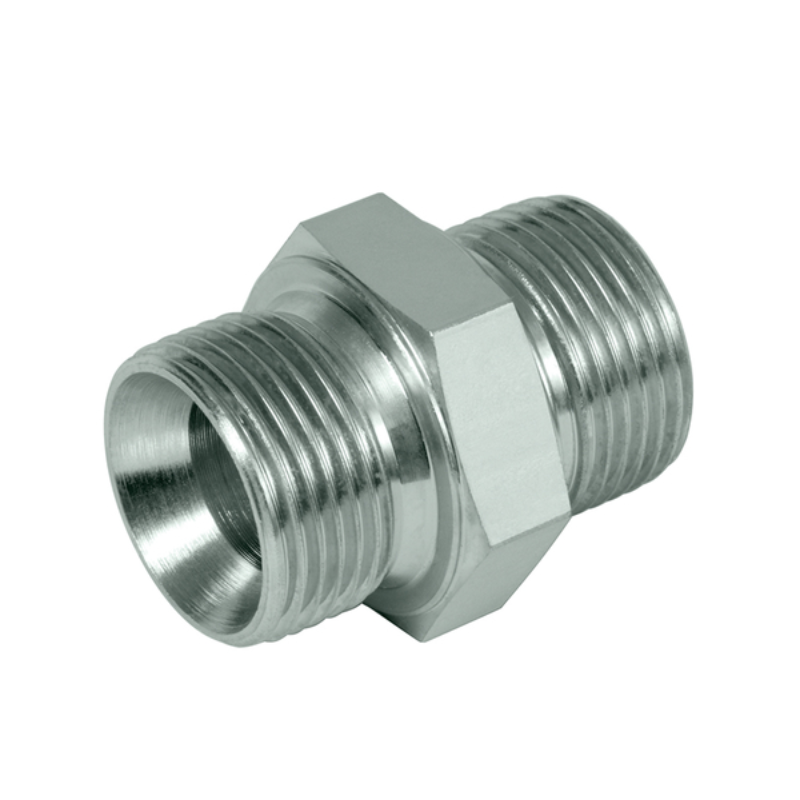

SGI’s Reducer is designed to connect different tube or pipe sizes while maintaining secure and reliable flow transition across gas and fluid systems. The precision-machined design supports accurate fitment, smooth flow transfer, and dependable sealing performance in industrial and instrumentation applications.
Available in various size combinations to suit different connection requirements and system configurations.
| Tube OD (in) | Wall Thickness (mm) | Tube OD (mm) | Wall Thick (mm) | A (mm) | B (mm) | Pressure Rating (BAR) | Order No. |
|---|---|---|---|---|---|---|---|
| 3/8" | 0.89 | 1/4" | 0.89 | 50 | 25 | 209 | OW-S6-R-6O-4O |
| 1/2" | 1.24 | 1/4" | 0.89 | 50 | 25 | 209 | OW-S6-R-8O-4O |
| 1/2" | 1.24 | 3/8" | 0.89 | 50 | 25 | 209 | OW-S6-R-8O-6O |
| 3/4" | 1.24 | 3/8" | 0.89 | 50 | 25 | 150 | OW-S6-R-12O-6O |
| 3/4" | 1.24 | 1/2" | 1.24 | 50 | 25 | 150 | OW-S6-R-12O-8O |
| 1 | 1.65 | 1/2" | 1.24 | 50 | 25 | 140 | OW-S6-R-16O-8O |
| 1 | 1.65 | 3/4" | 1.24 | 50 | 25 | 140 | OW-S6-R-16O-12O |
