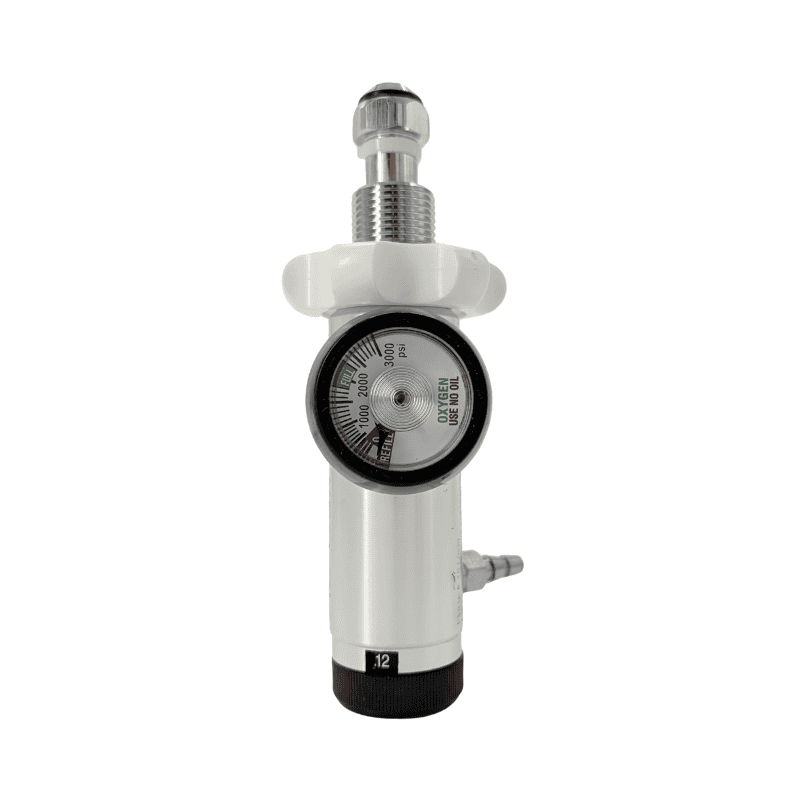

Oxygen Regulator- front view with pressure gauge

Oxygen Flow Regulator

SGI’s Oxygen Flow Regulator delivers precise oxygen control with an adjustable flow range of 0–15 LPM for controlled and consistent oxygen delivery. Designed for reliable oxygen therapy applications, the regulator operates at an input pressure of 200 bar (2900 PSI) and provides a stable output pressure of 10 bar (145 PSI).

The regulator is available with various inlet connection options and includes a humidification bottle to support safe and dependable operation.

DESCRIPTION

Model	Inlet Connection	Outlet Connection	Preset Fixed Flows	Max Intlet Pressure	Outlet Pressure	Material Of Construction	Dial Gauge
OFR-W21.8 F-AL 0 to 15	W21.8-Female	4.8mm (3/16”) Barb	0, 0.12, 0.5, 1, 1.5, 2, 3, 4, 6, 8, 10, 15	200 Bar (2900 Psi)	10 Bar (145 Psi)	Aluminium	0-200 Bar (0-3000 Psi)
OFR-G 3/4 F-AL 0 to 15	G 3/4"-Female	4.8mm (3/16”) Barb	0, 0.12, 0.5, 1, 1.5, 2, 3, 4, 6, 8, 10, 15	200 Bar (2900 Psi)	10 Bar (145 Psi)	Aluminium	0-200 Bar (0-3000 Psi)
OFR-CGA 540-AL 0 to 15	CGA 540	4.8mm (3/16”) Barb	0, 0.12, 0.5, 1, 1.5, 2, 3, 4, 6, 8, 10, 15	200 Bar (2900 Psi)	10 Bar (145 Psi)	Aluminium	0-200 Bar (0-3000 Psi)
OFR-CGA 870-AL 0 to 15	CGA 870	4.8mm (3/16”) Barb	0, 0.12, 0.5, 1, 1.5, 2, 3, 4, 6, 8, 10, 15	200 Bar (2900 Psi)	10 Bar (145 Psi)	Aluminium	0-200 Bar (0-3000 Psi)
OFR-G5/8 F-AL 0 to 15	G-5/8" Female	4.8mm (3/16”) Barb	0, 0.12, 0.5, 1, 1.5, 2, 3, 4, 6, 8, 10, 15	200 Bar (2900 Psi)	10 Bar (145 Psi)	Aluminium	0-200 Bar (0-3000 Psi)
OFR-G5/8 M-AL 0 to 15	G-5/8" Male BS 341 No.3	4.8mm (3/16”) Barb	0, 0.12, 0.5, 1, 1.5, 2, 3, 4, 6, 8, 10, 15	200 Bar (2900 Psi)	10 Bar (145 Psi)	Aluminium	0-200 Bar (0-3000 Psi)
