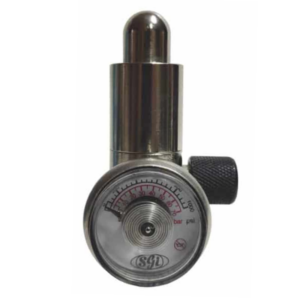

The Duo flow regulator is designed to have a button on top for temporary release of gas if the button is pressed down to prevent accidental loss of gas and a rotating cap for situations where continuous flow of gas is required and the regulator is needed to be in on position.
Both mechanisms are easy to use for outlet flow rates of 0.5 L/Mn and 1.0 L/Mn
DESCRIPTION
Inlet Pressure:
70 bar
Outlet Flow:
0.5 L/Mn & 1.0 L/Mn
Inlet Connection:
C10-5/8” x 18 UNF-M
Outlet Connection:
Barbed connection & Taper Shank adaptable to Polyurethane tube.
