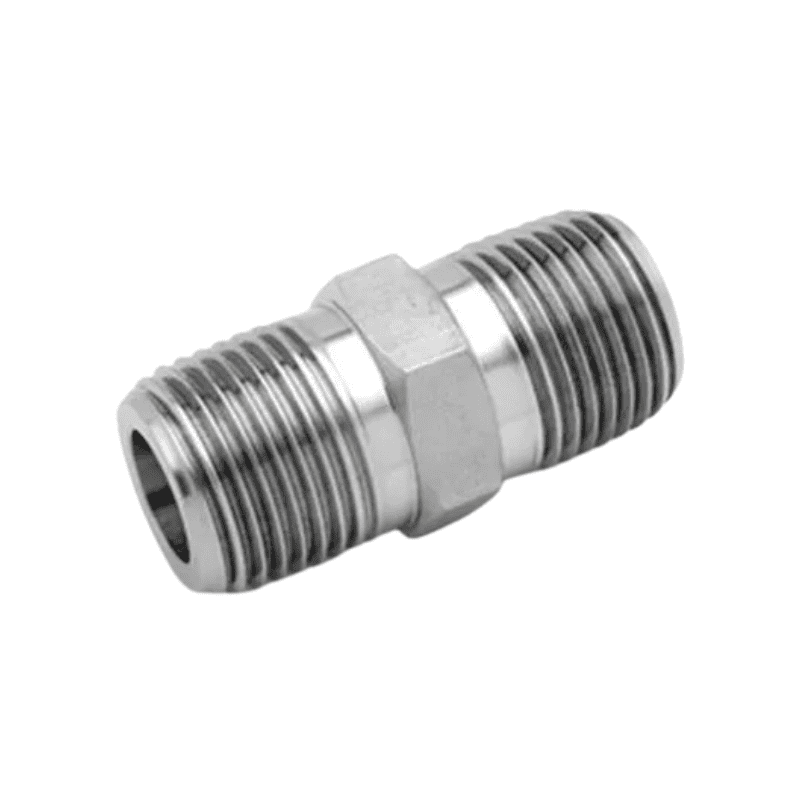

SGI’s Nipple Close is designed for direct connection between two female threaded ports with minimal length. They provide a compact, and secure joint for industrial gas applications. Available in various size combinations to suit standard requirements.
| Pipe Size (NPT Male) | L (mm) | F (mm) | PSIG | BAR | Order No. |
|---|---|---|---|---|---|
| 1/8 | 4.8 | 19.1 | 9100 | 620 | PF-S6-NC-2NM |
| 1/4 | 7.1 | 28.4 | 7500 | 510 | PF-S6-NC-4NM |
| 3/8 | 7.1 | 28.4 | 7200 | 490 | PF-S6-NC-6NM |
| 1/2 | 11.9 | 38.1 | 6600 | 450 | PF-S6-NC-8NM |
| 3/4 | 15.7 | 38.1 | 6400 | 435 | PF-S6-NC-12NM |
| 1 | 22.4 | 47.8 | 4600 | 315 | PF-S6-N5-16NM |
