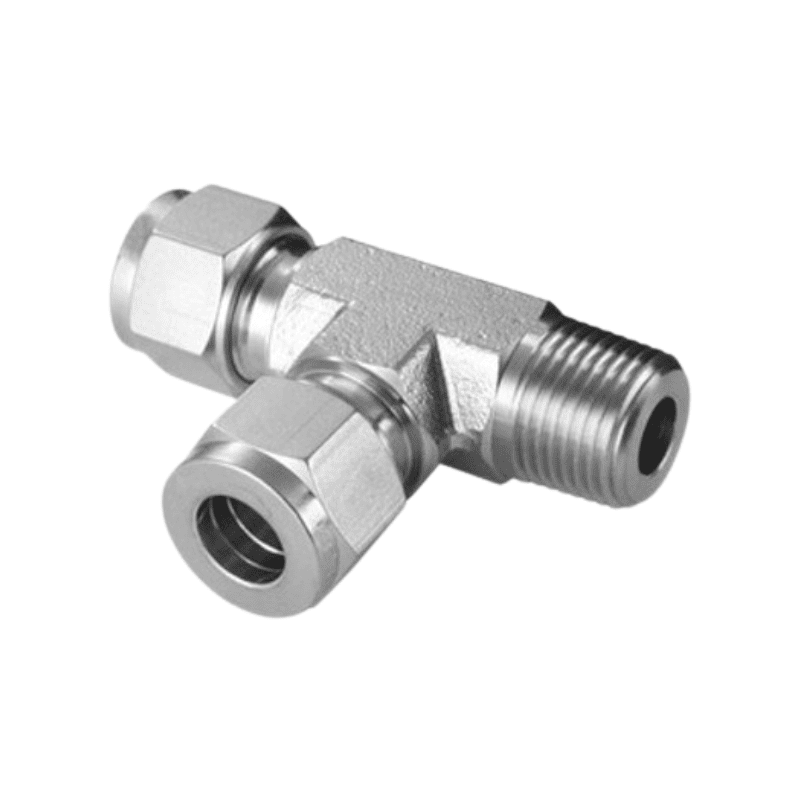

SGI’s Male Run T features a male threaded run with a branch connection for tubing, allowing direct connection to female threaded ports. Available in various size combinations to suit standard requirements.
| Tube OD (in) | NPT Size (in) | A (mm) | Ax (mm) | D (mm) | E (mm) | F (in) | Order No. |
|---|---|---|---|---|---|---|---|
| 1/8" | 1/8" | 41.4 | 23.63 | 12.7 | 2.3 | 7/16" | DF-S6-MRT-2-2-2NM |
| 1/8" | 1/4" | 48.01 | 24.64 | 12.7 | 2.3 | 1/2" | DF-S6-MRT-2-2-2NM |
| 3/16" | 1/8" | 42.16 | 24.38 | 13.7 | 3.1 | 7/16" | DF-S6-MRT-2-2-2NM |
| 1/4" | 1/8" | 45.72 | 26.92 | 15.2 | 4.8 | 1/2" | DF-S6-MRT-2-2-2NM |
| 1/4" | 1/4" | 50.29 | 26.92 | 15.2 | 4.8 | 1/2" | DF-S6-MRT-2-2-2NM |
| 5/16" | 1/8" | 50.55 | 29.72 | 16.3 | 4.8 | 5/8" | DF-S6-MRT-2-2-2NM |
| 3/8" | 1/4" | 55.88 | 30.48 | 16.8 | 7.1 | 5/8" | DF-S6-MRT-2-2-2NM |
| 3/8" | 3/8" | 61.47 | 33.27 | 16.8 | 7.1 | 13/16" | DF-S6-MRT-2-2-2NM |
| 1/2" | 3/8" | 64.262 | 36.068 | 22.86 | 9.7 | 13/16" | DF-S6-MRT-2-2-2NM |
| 1/2" | 1/2" | 69.088 | 36.068 | 22.86 | 10.414 | 13/16" | DF-S6-MRT-2-2-2NM |
| 5/8" | 1/2" | 73.152 | 38.1 | 24.384 | 11.938 | 15/16" | DF-S6-MRT-2-2-2NM |
| 3/4" | 3/4" | 76.708 | 39.878 | 24.384 | 15.748 | 1 1/16" | DF-S6-MRT-2-2-2NM |
