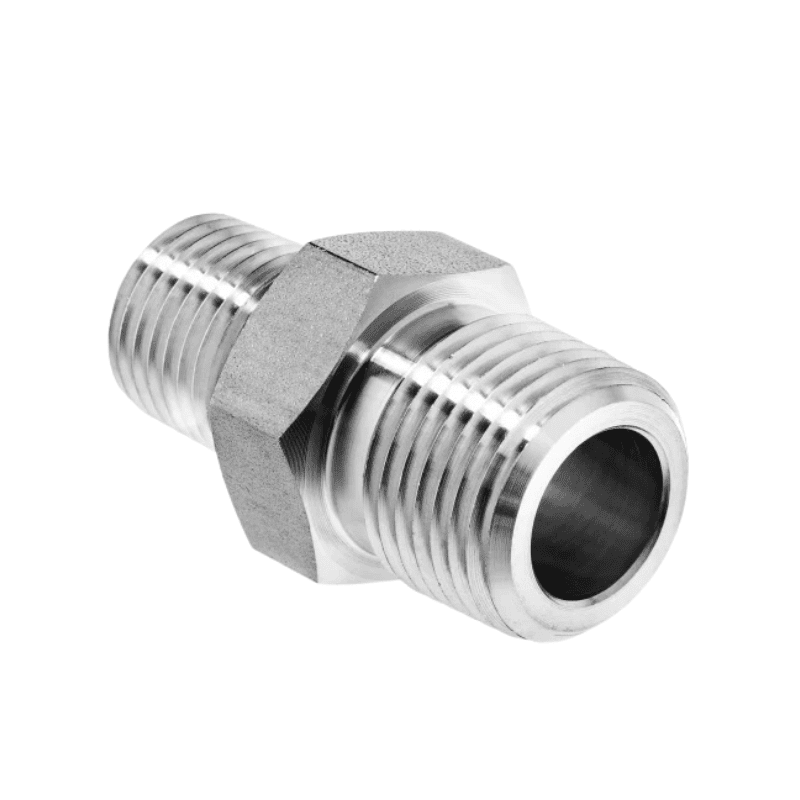

SGI’s Hex Nipple – Male NPT Thread is designed to connect two female NPT threaded ports, providing a secure link for industrial gas applications. The hex body allows easy installation and removal. Available in various size combinations to suit standard requirements.
| Pipe Size (NPT Male) | E (mm) | L (mm) | F (in) | PSIG | BAR | Order No. |
|---|---|---|---|---|---|---|
| 1/8 | 4.8 | 25.6 | 7/16 | 9100 | 620 | PF-S6-HN-2NM |
| 1/4 | 7.1 | 35.6 | 9/16 | 7500 | 510 | PF-S6-HN-4NM |
| 3/8 | 9.6 | 36.3 | 11/16 | 7200 | 490 | PF-S6-HN-6NM |
| 1/2 | 11.9 | 46.7 | 7/8 | 6600 | 450 | PF-S6-HN-8NM |
| 3/4 | 15.7 | 46.7 | 11/8 | 6400 | 435 | PF-S6-HN-12NM |
| 1 | 22.4 | 58.9 | 13/8 | 4600 | 313 | PF-S6-HN-2-NM |
