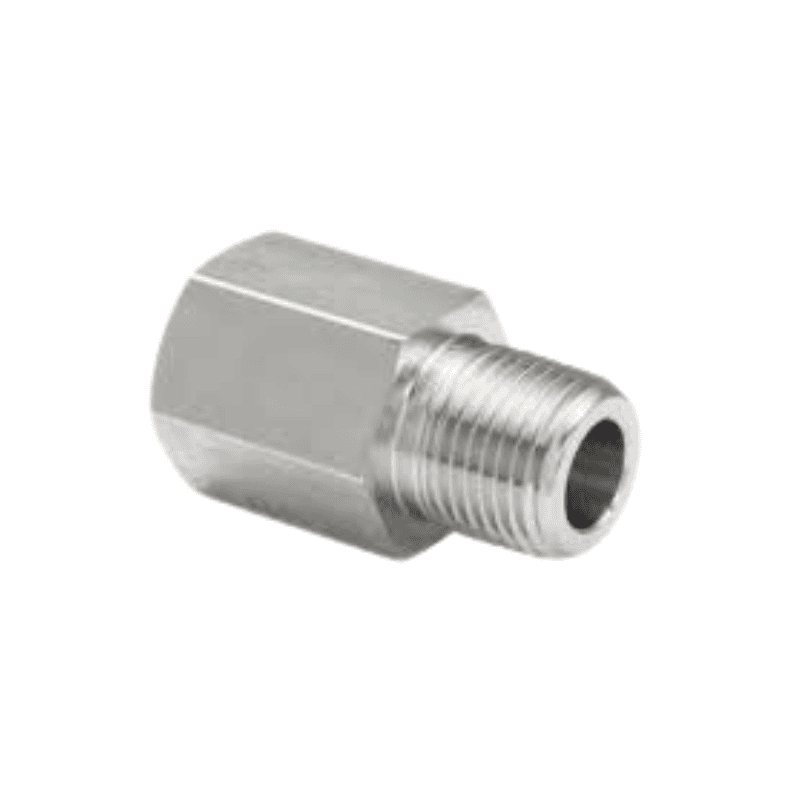

SGI’s Female NPT to Male BSP thread is designed to connect NPT and BSP threaded components, enabling compatibility across different thread standards. They provide secure engagement and reliable sealing in industrial gas applications. Available in various size combinations to match standard requirements.
| NPT Male | BSP Male | B (mm) | C (mm) | E (mm) | L (mm) | F (mm) | PSIG | BAR | Order No. |
|---|---|---|---|---|---|---|---|---|---|
| 1/8 | 1/8 | 7.1 | 13.7 | 4.1 | 25.1 | 9/16 | 6100 | 415 | PF-S6-A-2NF-2BM |
| 1/4 | 1/4 | 11.2 | 18 | 5.8 | 33.5 | 3/4 | 6200 | 422 | PF-S6-A-4NF-4BM |
| 3/8 | 3/8 | 11.2 | 21.6 | 7.9 | 35.8 | 7/8 | 5000 | 340 | PF-S6-A-6NF-6BM |
| 1/2 | 1/2 | 14.2 | 25.9 | 11.9 | 44.2 | 11/16 | 4600 | 315 | PF-S6-A-8NF-8BM |
| 3/4 | 3/4 | 15.7 | 32 | 15.7 | 48.0 | 15/16 | 4300 | 292 | PF-S6-A-12NF-12BM |
| 1 | 1 | 18.3 | 38.9 | 19.8 | 53.3 | 15/8 | 4100 | 280 | PF-S6-A-16NF-16BM |
