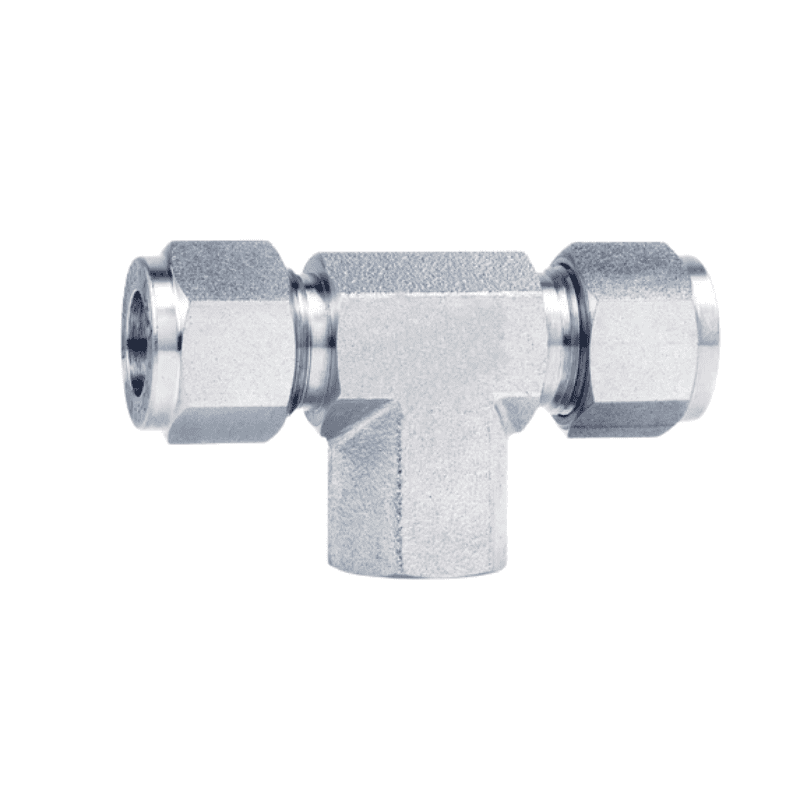

SGI’s Female Branch T is designed to provide a branch connection with a female threaded outlet, allowing connection to male threaded components in instrumentation and industrial gas systems. Available in various size combinations to match standard requirements.
| Tube OD (in) | NPT Size (in) | Ax (mm) | D (mm) | E (mm) | F (in) | Order No. |
|---|---|---|---|---|---|---|
| 1/8" | 1/8" | 49.28 | 12.7 | 1/2" | DF-S6-FBT-2-2NF | |
| 1/4" | 1/8" | 53.85 | 15.2 | 4.8 | 1/2" | DF-S6-FBT-4-2NF |
| 1/4" | 1/4" | 59.44 | 15.2 | 4.8 | 1 1/16" | DF-S6-FBT-4-4NF |
| 3/8" | 1/4" | 62.48 | 16.8 | 7.1 | 1 1/16" | DF-S6-FBT-6-4NF |
| 3/8" | 3/8" | 66.55 | 16.8 | 7.1 | 1 3/16" | DF-S6-FBT-6-6NF |
| 3/8" | 1/2" | 72.14 | 16.8 | 7.1 | 1" | DF-S6-FBT-8-8NF |
| 1/2" | 1/4" | 72.14 | 22.86 | 10.414 | 1 3/16" | DF-S6-FBT-8-4NF |
| 1/2" | 3/8" | 72.136 | 22.86 | 10.414 | 1 3/16" | DF-S6-FBT-8-6NF |
| 1/2" | 1/2" | 77.724 | 22.86 | 10.414 | 1" | DF-S6-FBT-8-8NF |
| 5/8" | 1/2" | 77.724 | 24.384 | 12.7 | 1" | DF-S6-FBT-10-8NF |
| 3/4" | 3/4" | 89.408 | 24.384 | 15.748 | 1 3/8" | DF-S6-FBT-12-12NF |
| 1" | 3/4" | 98.044 | 31.242 | 22.352 | 1 3/8" | DF-S6-FBT-16-12NF |
| 1" | 1" | 107.188 | 31.242 | 22.352 | 111/16" | DF-S6-FBT-16-16NF |
