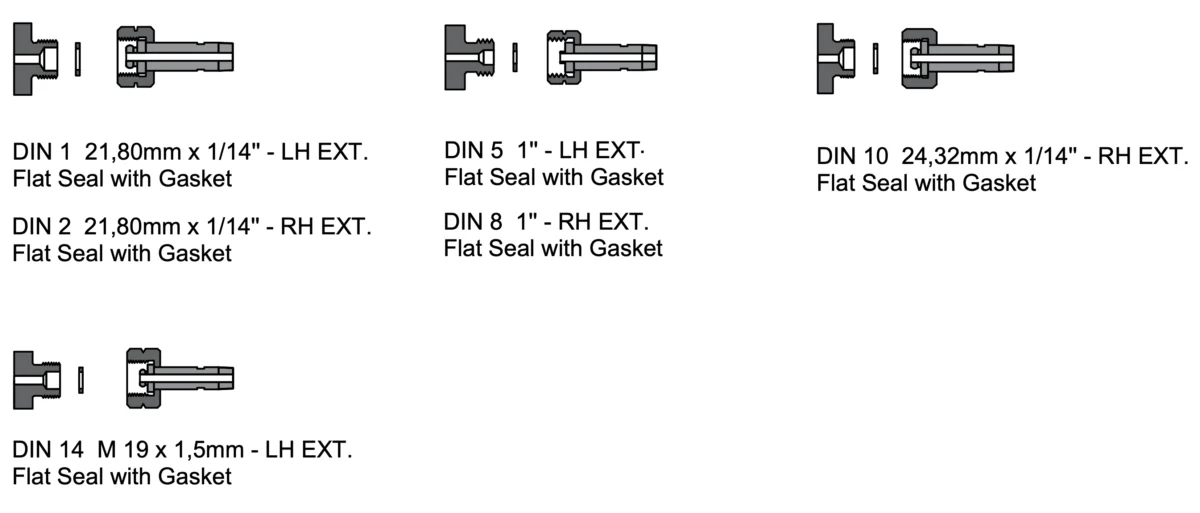

SGI’s DIN Standard Cylinder Valve Outlets and Connections:
For a detailed understanding of the DIN Standard cylinder valve outlets and connections, please refer to the table below:
| Gas | DIN |
|---|---|
| Air | 6 |
| Allene | 1 |
| Ammonia, Anhydrous | 8 |
| Argon | 10 |
| Arsine | 5 |
| 1,3-Butadiene | 1 |
| Butane | 1 |
| Butenes | 1 |
| Carbon Dioxide | 6 |
| Carbon Monoxide | 5 |
| Carbonyl Fluoride | 8 |
| Carbonyl Sulfide | 5 |
| Chlorine | 8 |
| Cyanogen | 8 |
| Deuterium | 1 |
| Dimethylamine | 5 |
| Dimethyl Ether | 1 |
| Ethane | 1 |
| Ethyl Acetylene | 1 |
| Ethyl Chloride | 1 |
| Ethylene | 1 |
| Ethylene Oxide | 1 |
| Halocarbon-14 (Tetrafluoromethane) | 6 |
| Halocarbon-22 (Chlorodifluoromethane) | 6 |
| Helium | 10 |
| Hydrogen | 1 |
| Hydrogen Bromide | 8 |
| Hydrogen Chloride | 8 |
| Hydrogen Sulfide | 5 |
| Iso-Butane | 1 |
| Iso-Butylene | 1 |
| Krypton | 10 |
| Methane | 1 |
| Methyl Chloride | 5 |
| Methyl Mercaptan | 5 |
| Monoethylamine | 5 |
| Monomethylamine | 5 |
| Natural Gas | 1 |
| Neon | 10 |
| Nitric Oxide | 8 |
| Nitrogen | 10 |
| Nitrogen Dioxide | 8 |
| Nitrous Oxide | 6 |
| Phosgene | 8 |
| Phosphine | 5 |
| Propane | 1 |
| Propylene | 1 |
| Silane | 5 |
| Silicon Tetrafluoride | 8 |
| Sulfur Dioxide | 8 |
| Sulfur Hexafluoride | 6 |
| Trimethylamine | 5 |
| Vinyl Chloride | 5 |
| Xenon | 10 |
