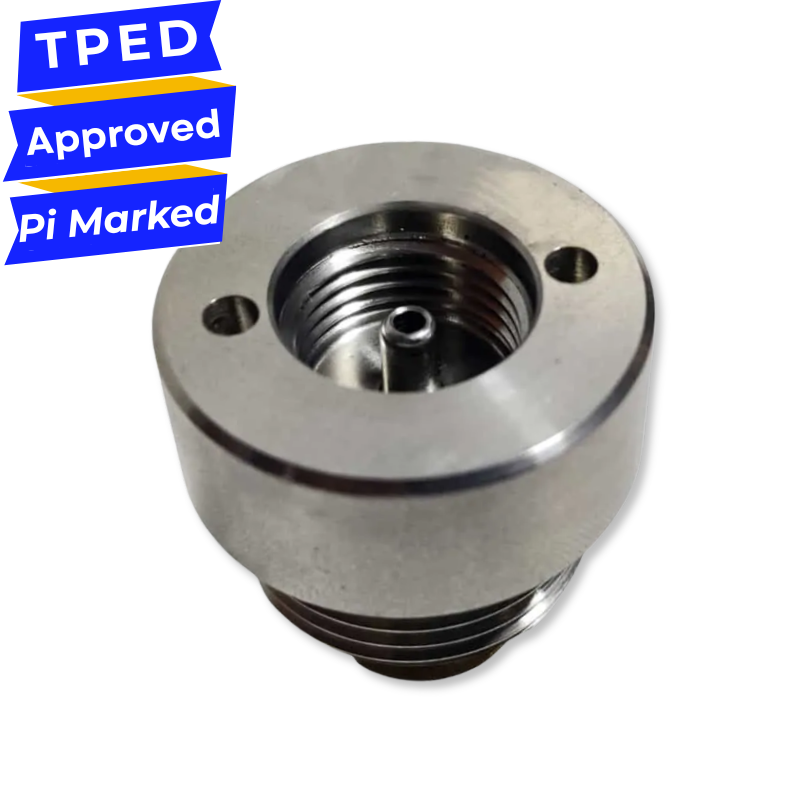

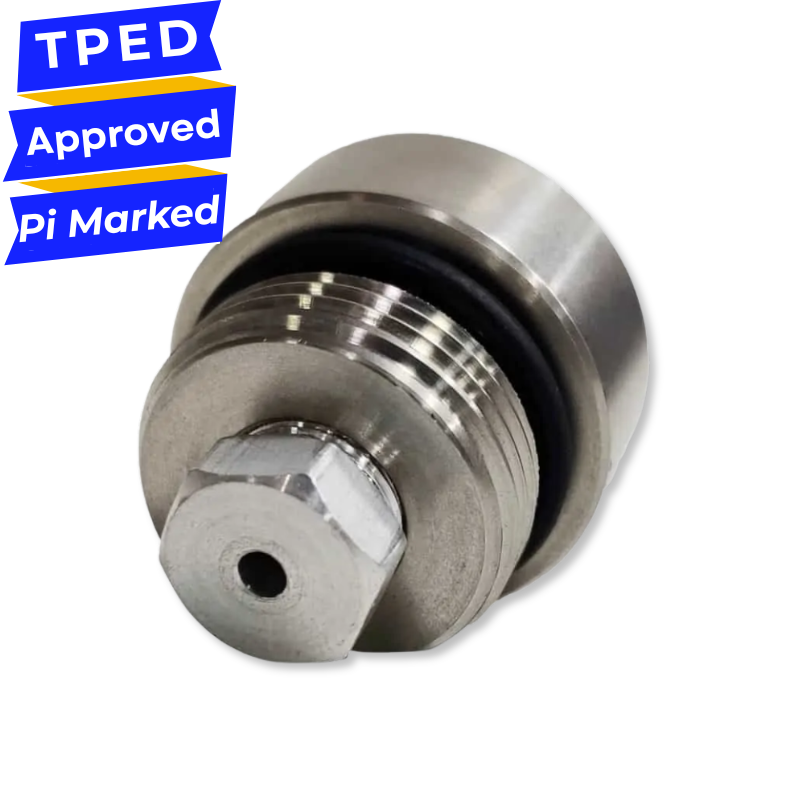

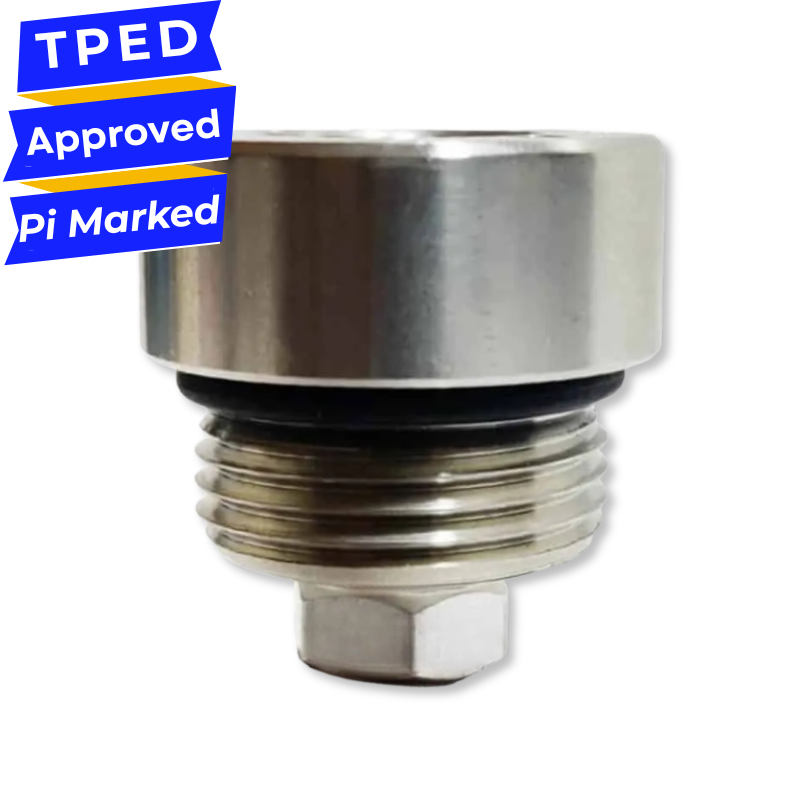

C10 Valve

SGI’s Standard C10 Valve is designed for use with corrosive and non-corrosive gas cylinders and features a standard C10 connection for reliable gas control across different cylinder applications. Manufactured in brass and stainless steel, the valve is available for both refillable and non-refillable cylinders with working pressure above 100 bar (1450 PSI).

It is also European approved as per TPED / PI marked requirements.

DESCRIPTION
ModelMaterialO-ringInlet ConnectionOutlet ConnectionService Pressure (psi)/(bar)PRD Set-up Pressure (psi)
SGI C10 AL 3/4 AERAluminumFLP Viton3/4-16 UNF 2A5/8-18 UNF 2B1000 psi (70bar)w/o PRD
SGI C10 SS 3/4 AERSS303FLP Viton3/4-16 UNF 2A5/8-18 UNF 2B1000 psi (70bar)w/o PRD
SGI C10 AL 1-14AluminumFLP Viton1-14 UNS 2A5/8-18 UNF 2B1000 psi (70bar)w/o PRD
SGI C10 AL 1-14 PRDAluminumFLP Viton1-14 UNS 2A5/8-18 UNF 2B1000 psi (70bar)W/PRD
SGI C10 BR Ni-BrBrassFLP Viton1-14 UNS 2A5/8-18 UNF 2B1000 psi (70bar)W/o PRD
SGI C10 BR Ni-Br PRDBrassFLP Viton1-14 UNS 2A5/8-18 UNF 2B1000 psi (70bar)w/PRD
SGI C10 SSSS303FLP Viton1-14 UNS 2A5/8-18 UNF 2B1958 psi (135bar)W/o PRD
SGI C10 SS PRDSS303FLP Viton1-14 UNS 2A5/8-18 UNF 2B1305 psi (90bar)W/PRD
SGI C10 SS NRSS303FLP Viton1-14 UNS 2A5/8-18 UNF 2B1305 psi (90bar)w/o PRD
SGI C10 SS 316SS316FLP Viton1-14 UNS 2A5/8-18 UNF 2B1305 psi (90bar)W/o PRD
